White Paper: Developing Platform Firmware Resilience with Winbond TrustME^® W77Q for Fast Time-to-Market

Introduction

Modern computing systems, embedded solutions, and IoT devices continue to face increasing security threats. As public reliance on connected systems grows, the need for robust firmware protection has never been greater. Recent large-scale cyberattacks have shown the firmware vulnerability to unauthorised modifications, potentially leading to system failure or hijacking. The consequences can be severe, ranging from operational downtime to financial and reputational damage.

One of the key challenges in system security is ensuring the resilience of platform firmware. The goal is to prevent systems from becoming "bricked" due to firmware corruption, whether accidental or malicious. Recovering from such events typically requires costly manual repairs or system reboots, making firmware resiliency a critical aspect of modern security architectures.

The U.S. National Institute of Standards and Technology (NIST) introduced publication 800-193 to establish best practices for platform firmware resilience (PFR). This document provides guidelines for protecting firmware against unauthorised modification, detecting firmware corruption, and enabling reliable recovery mechanisms. While the principles of PFR are well-established, implementing them efficiently remains a challenge.

This white paper explores how Winbond's TrustME® W77Q Secure Flash Memory provides an industry-leading solution for achieving PFR in compliance with NIST 800-193. The W77Q series offers a cost-effective, scalable, and easy-to-integrate alternative to traditional FPGA-based solutions, enabling manufacturers to enhance security while accelerating time-to-market.

Platform Firmware Resiliency: An Overview

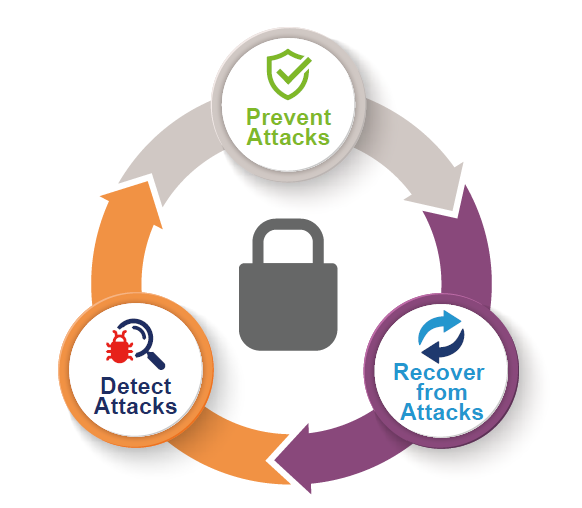

The  NIST SP 800-193 guidelines outline three key principles for PFR:

• Protection: Preventing unauthorised modifications to firmware.
• Detection: Identifying malicious or accidental firmware corruption.
• Recovery: Restoring a system to a trusted state following a compromise.

Traditional PFR implementations often rely on FPGA-based or custom hardware security solutions. While effective, these approaches introduce significant cost, complexity, and supply chain risks. Winbond's W77Q Secure Flash Memory addresses these concerns by integrating advanced security features directly into industry-standard Serial NOR Flash, enabling a streamlined approach to firmware resilience.

Winbond TrustME® W77Q: A Secure Flash Solution

Winbond's TrustME® W77Q series is a family of  Serial NOR Flash devices designed to support secure firmware storage, authentication, and recovery mechanisms. By leveraging cryptographic capabilities, W77Q ensures that firmware integrity is maintained throughout the device lifecycle.

Key Features and Benefits:

• Drop-in Replacement: W77Q follows JEDEC-standard Serial NOR packaging and pin-out, making it compatible with existing designs without requiring additional PCB modifications.
• Broad Density offer: Available in capacities from 16Mb to 1Gb to accommodate different firmware sizes.
• Secure Boot and Firmware Authentication: Implements cryptographic verification to prevent unauthorised firmware execution.
• Quantum-Safe Security: Supports  post-quantum cryptographic (PQC) algorithms including Leighton-Micali Signatures (LMS), ensuring future-proof protection.
• Hardware Root of Trust (RoT): Provides a secure foundation for trusted execution environments (TEE) and secure firmware updates.
• Rollback Prevention: Prevents reverting to outdated firmware versions that may contain vulnerabilities.
• Authenticated Watchdog Timer: Enhances system reliability by ensuring timely recovery from failures.
• In-Field Firmware Updates: Supports OTA updates for remote security patches and feature enhancements.

Compliance with NIST SP 800-193

Protection

Winbond W77Q prevents unauthorised firmware modifications through hardware-enforced cryptographic write protection. This is achieved through an embedded secure authentication mechanism, ensuring that only firmware signed with a trusted cryptographic key can be written to or modified in the memory. This prevents unauthorised firmware alterations that could introduce vulnerabilities or malicious code. Additionally, access control policies enforce strict read/write privileges, further reducing the attack surface for potential exploits.

Detection

The W77Q incorporates an in-chip engine that continuously monitors firmware integrity using cryptographic hashing algorithms. These algorithms generate a unique fingerprint for each firmware image, allowing real-time verification against stored reference values. If any unauthorised changes are detected—whether due to malware injection, corruption, or manipulation—the system immediately flags the issue, triggering alerts or locking down access to prevent further damage. The detection mechanism is further enhanced by a Replay Protected Monotonic Counter (RPMC), which ensures that only authorised updates are applied, mitigating rollback attacks where adversaries attempt to restore older, compromised firmware versions.

Recovery

W77Q’s Safe Fallback feature ensures robust recovery from firmware corruption or malicious attacks by reverting to a trusted recovery image stored in a secure partition. This feature allows systems to recover automatically without requiring manual intervention, significantly improving operational resilience. The recovery image is protected with cryptographic signatures and write-protected memory regions to ensure its authenticity and integrity.

Furthermore, the W77Q integrates an authenticated watchdog timer (WDT), which actively monitors the system and can trigger an automatic reboot into a safe firmware state if an anomaly is detected. This is particularly valuable in mission-critical applications, such as industrial automation and automotive systems, where even a brief period of downtime can result in significant financial and operational losses.

Time-to-Market and Integration Benefits

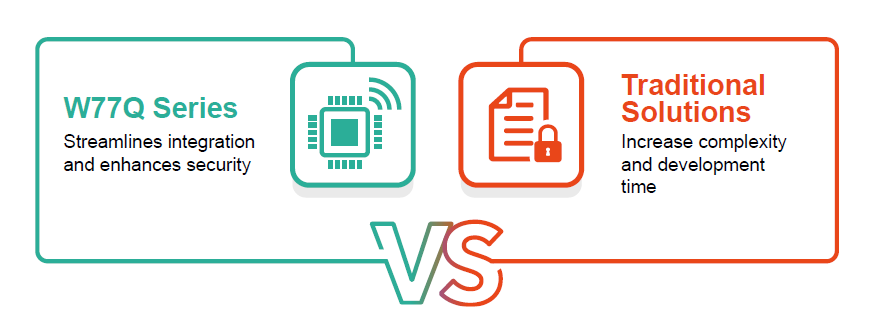

One of the key advantages of the W77Q series is its ease of integration, making it an ideal choice for design engineers looking to enhance platform firmware resilience without incurring high development costs or extensive hardware modifications. Traditional security solutions often require additional dedicated security ICs, FPGA-based implementations, or extensive firmware redesigns, all of which increase complexity and prolong development cycles. In contrast, W77Q allows for a streamlined phased deployment strategy:

• Drop-in Compatibility: W77Q is fully pin-compatible with standard Serial NOR Flash Memory, eliminating the need for custom PCB modifications and enabling seamless integration into existing designs.
• Phased Security Enablement: Initially, W77Q can be used as a conventional Serial NOR Flash Memory device, allowing manufacturers to deploy their products without security overheads. Security features, including cryptographic protections and rollback prevention, can then be enabled progressively through software updates, providing a flexible and scalable security implementation.
• Pre-Validated Security Libraries: Winbond provides royalty-free security libraries, software development kits (SDKs), and reference implementations that significantly reduce engineering effort and shorten development timelines.
• Secure Firmware Updates: W77Q’s in-field update capabilities allow manufacturers to deploy security patches and firmware upgrades remotely, ensuring devices remain resilient against evolving threats without requiring physical servicing.


By integrating these advanced security and resilience features in a cost-effective, easy-to-implement package, Winbond’s W77Q series provides a compelling solution for achieving compliance with NIST 800-193 while accelerating time-to-market for secure embedded systems.

Industry Use Cases

Automotive

Modern vehicles rely on reliable firmware to control electronic systems. W77Q meets automotive-grade security standards such as ISO 26262 and ISO 21434, ensuring compliance with functional safety and cybersecurity requirements.

Industrial Automation

Manufacturers increasingly deploy connected IoT devices in industrial settings. W77Q protects these systems from firmware attacks, minimising downtime and ensuring secure remote updates.

Consumer Electronics

With the rise of smart devices, firmware security is a growing concern. W77Q enables secure boot and firmware protection for smart home devices, wearables, and consumer electronics.

Competitive Differentiation

Compared to other Secure Flash solutions, the W77Q series offers several distinct advantages that make it a preferred choice for engineers seeking high-performance, cost-effective, and future-proof security solutions:

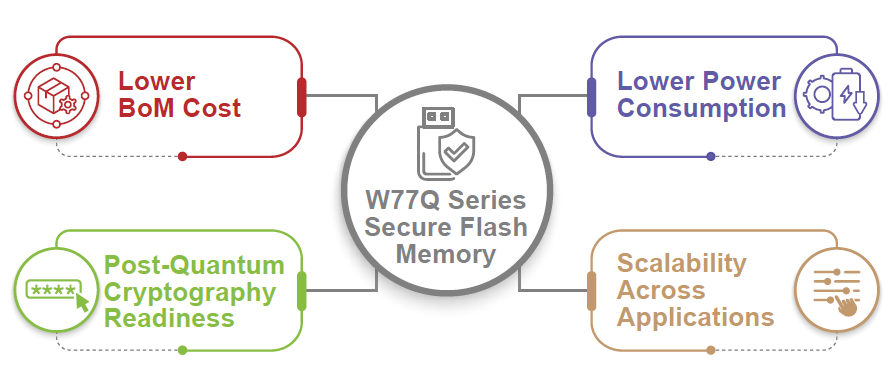

Lower BOM Cost

Traditional security implementations often require additional hardware components such as dedicated security ICs or FPGA-based solutions, significantly increasing the overall bill of materials (BOM) cost. The W77Q integrates advanced security features directly into Serial NOR Flash Memory, eliminating the need for external secure elements while maintaining robust firmware integrity protection. This leads to a simplified design process, reduced manufacturing costs, and a smaller footprint, making it an ideal solution for resource-constrained applications.

Lower Power Consumption

Many security-enhanced storage solutions introduce significant power overhead due to the additional cryptographic computations required. However, the W77Q has been optimised for energy-efficient operation, ensuring that even with its advanced security features, power consumption remains minimal. This makes it particularly suitable for battery-powered devices such as wearables, IoT sensors, and industrial edge computing applications where energy efficiency is a critical requirement.

Scalability Across Applications

The W77Q is designed to cater to a broad spectrum of applications, ranging from low-end IoT devices to high-end enterprise and automotive systems. With support for densities from 16Mb to 1Gb, multiple voltage options (1.8V and 3V), and compatibility with industry-standard Serial NOR Flash interfaces, the W77Q provides a versatile and scalable security solution adaptable to different market needs.

Post-Quantum Cryptography (PQC) Readiness

As quantum computing advancements pose a growing threat to conventional cryptographic algorithms, future-proof security measures are essential. The W77Q supports post-quantum cryptographic (PQC) algorithms such as Leighton-Micali Signatures (LMS), which align with emerging NIST standards for quantum-resistant encryption. By integrating PQC capabilities, W77Q ensures long-term protection against evolving cyber threats, making it a strategic investment for applications requiring robust security beyond today’s cryptographic landscape.

By combining cost efficiency, low power operation, scalability, and cutting-edge security features, the W77Q series stands out as a leading secure flash memory solution, empowering engineers to design resilient and future-proof systems with minimal overhead.

Conclusion

As cyber threats continue to evolve, platform firmware resiliency is becoming a critical requirement across industries. Winbond's TrustME® W77Q Secure Flash Memory provides an efficient, cost-effective, and easy-to-integrate solution for achieving compliance with NIST 800-193. By leveraging W77Q, system designers can enhance security, reduce development costs, and accelerate time-to-market, ensuring that their products remain resilient against future cyber threats.

For more details, contact us at TrustME@winbond.com or visit Winbond Secure Flash web page.
